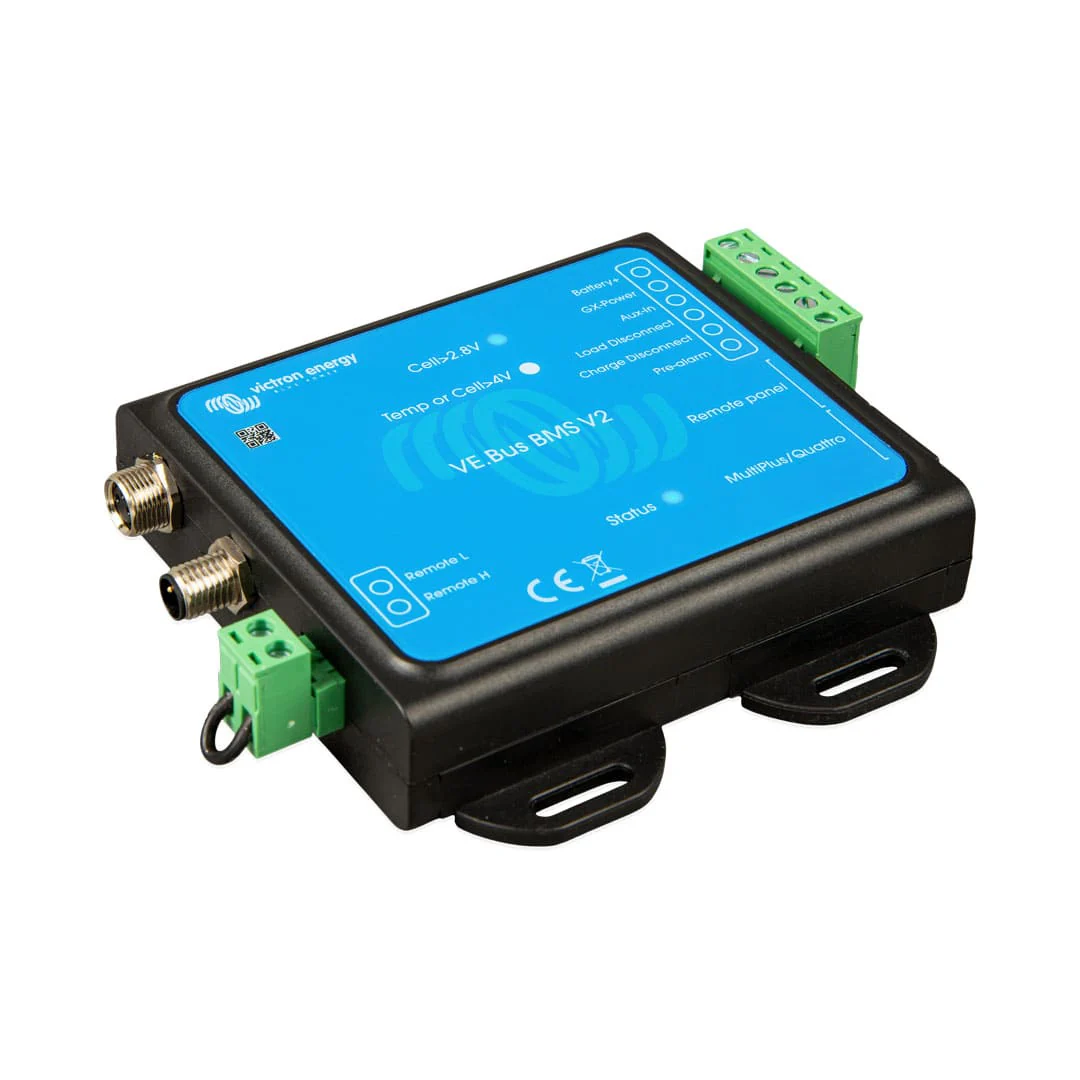

Victron VE.Bus BMS V2 - BMS300200200
The Victron VE.Bus BMS V2 is a Battery Management System (BMS) designed to work with Victron Energy's Lithium Iron Phosphate (LiFePOâ‚„) batteries. It helps ensure safe and reliable battery performance by monitoring individual battery cells, protecting against over-voltage, under-voltage, and temperature extremes.
This BMS is a practical tool for maintaining the health and efficiency of lithium battery systems, supporting long-term performance while minimizing risks of cell damage.
Main Features:
Cell Protection: Monitors each battery cell, preventing over-voltage, under-voltage, and temperature extremes to maintain optimal battery health.
Scalable: Supports up to 20 batteries in series or parallel configurations, allowing for flexible energy storage solutions up to 102 kWh.
Automatic Safety Features: Disables charging or discharging when conditions are outside safe limits, ensuring the longevity of the battery system.
Seamless Integration: Designed to work directly with Victron inverters and chargers, as well as other VE.Bus products, for simplified system management.
Remote Monitoring: Compatible with Victron GX devices for easy remote control and monitoring of the battery system, offering greater flexibility and oversight.
Versatile Application: Suitable for 12V, 24V, or 48V systems, making it adaptable for various energy storage setups.
Quick Specs:
-
Input Voltage Range: 9 – 70 VDC
-
Current Draw:
Regular Operation: 10 mA
Low Cell Voltage: 2 mA
Switched Off via Remote Terminal: 1.5 mA
-
Operating Temperature: -20°C to +50°C
-
Protection Grade: IP20
-
Supported Battery Types: Victron Lithium Iron Phosphate (LiFePOâ‚„)
-
Maximum Battery Bank: Up to 20 batteries, supporting energy storage of up to 102 kWh
-
Remote Terminals: On/Off control via remote switch or relay
-
Communication Ports: 2 x RJ45 sockets for VE.Bus products
-
Dimensions: 23.8 mm x 94.5 mm x 105.5 mm
- Weight: 120 g
Specifications
Click Here To View Victron VE.Bus BMS V2 DATASHEET
Manual
Click Here To View Victron VE.Bus BMS V2 MANUAL
Warranty
