Victron Lynx Power In (M8) - LYN020102000

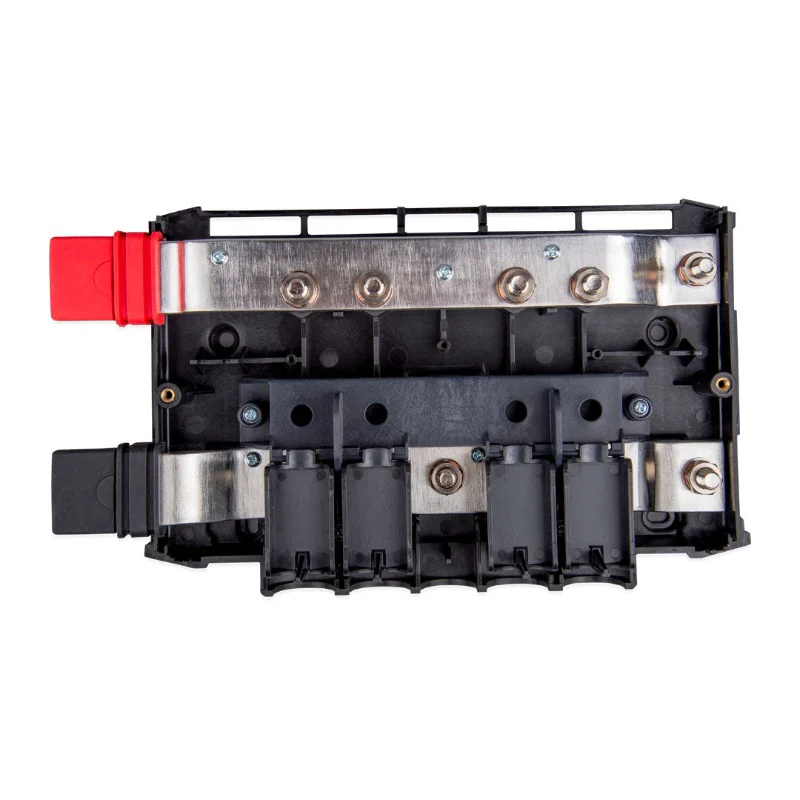

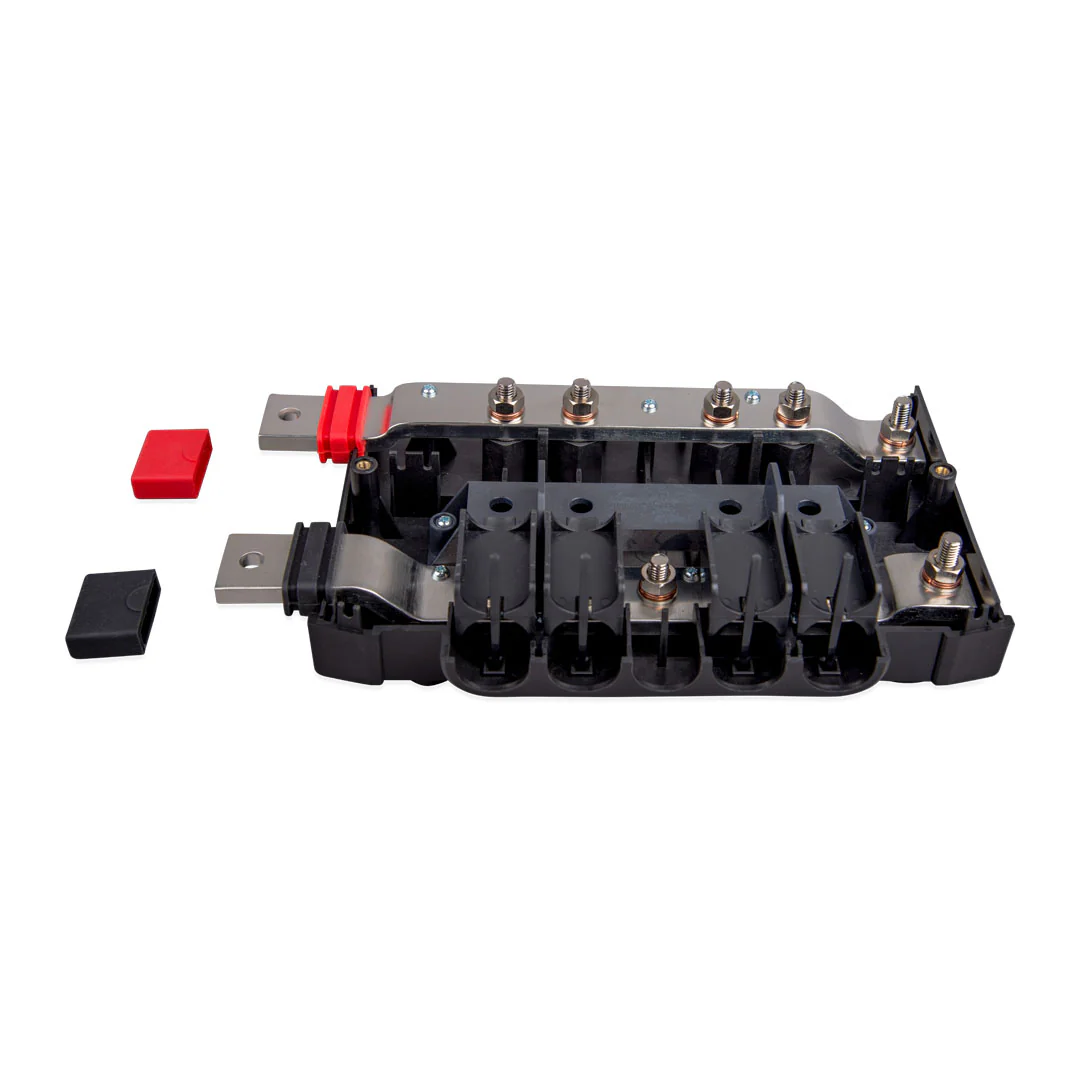

The Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection. It is a modular DC busbar, used to connect batteries to the Lynx DC distribution system.

Now available in M8 and M10 models.

Features:
- Voltage range 9 - 60Vdc
- Current rating 1000A
- Busbar M8
- Enclosure material ABS
- Enclosure dimensions (hxwxd) 290 x 170 x 80mm
- Unit weight 2.1 kg
- Busbar material Tinned copper
- Busbar dimensions (hxw) 8 x 30mm
- Operating temperature range -40°C to +60°
- Storage temperature range -40°C to +60°
- Protection class IP22

Specifications

Click here for Data Sheet

Warranty:

Click Here To View The Victron Energy Limited Warranty Policy DOCUMENT
